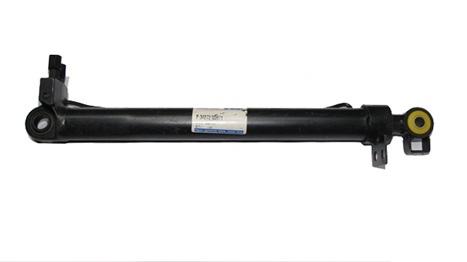

Cap Tilt Cylinder Assy 24V

 About of Cap Tilt Cylinder Assy 24V (P/N : 3487200100).

Product Name: Cab Tilt Cylinder

It is used for cab tilting system for large size truck as same as European specification. It can be used for various industrial purpose. (electric pump, hand pump, latch)

Truck parts 3

Specification:

Item

Type 1,2

Type 3

Max. Pressure

380 kgf/㎠

380 kgf/㎠

Close Length

492 ±3 mm

636 ±3 mm

Mounting Length

515 mm

673.8 mm

Extension Length

820 ±3 mm

1098 ±3 mm

Cylinder Stroke

328 ±3 mm

462 ±3 mm

(From Close Position)

System Stroke

305 ±3 mm

424.2 ±3 mm

Lost Motion

60mm

92mm

Free All Length

71mm

103mm

Finish

Black Painted

Black Painted

ModelProductManufacturerPart Number

TruckCab Tilt Cylinder(91A)H/DHyundai86940-73011

TruckCab Tilt Cylinder(EG)H/DHyundai64340-7A051

TruckCab Tilt Cylinder(New Powertec)H/DHyundai64340-7C061

TruckCab Tilt Cylinder(H/D) EG 5T OldHyundai64340-6A011

TruckCab Tilt Cylinder(H/D) Mega 5T NewHyundai64340-6B010

TruckCab Tilt Cylinder(Granto)KiaHA62C71760

TruckCab Tilt Cylinder -OldDaewoo3487200100

TruckCab Tilt Cylinder(Ultra) -NewDaewoo3487200190

TruckCab Tilt Cylinder(Novus)Daewoo3487200160(EUR04)

TruckCab Tilt Cylinder ASSYDaewoo34872 0014A

TruckCab Tilt Cylinder ASSYDaewoo34872 00370

TruckCab Tilt Cylinder(Prima) ASSY -C modelDaewoo34872 00440(Prima)

TruckCab Tilt Cylinder(Prima) AUTODaewoo3487200060, 63

TruckCab Tilt Cylinder(Prima) ManualDaewoo3487300070

TruckCab Tilt Cylinder(Prima) A-CAB TILTDaewoo3487200120

TruckCab Tilt Cylinder(Prima) CAB TILTDaewoo3487200011
